Glass Heaters

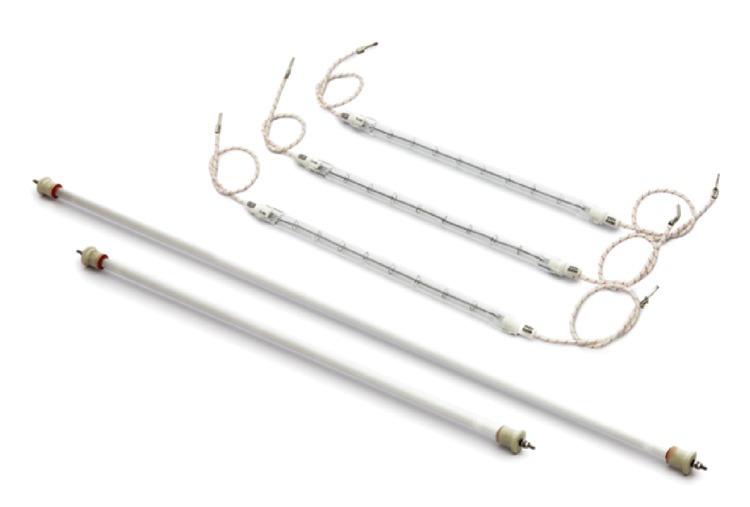

Short Wave Infrared Heaters
Infrared heat is transmitted directly in the form of electromagnetic rays at a velocity of approximately 300,000 km/sec. That is at the speed of light. It is therefore not only the fastest form of heat but is also suitable for particularly demanding applications such as vacuum technology and clean room conditions. Infrared heat is particularly economical on energy compared to other heat sources because it acts quickly, directly on products. Short wave IR emitters are suitable for all applications.
It is available in,
- Small round ceramic cap
- Big round ceramic cap
- Tal rod type holder
- Rectangular ceramic cap
Applications
- PET perform heating in stretch blow moulding machines
- Paint booth
- Rubber coating drying
- Soldering fusing PCB industries
- Printing ink drying in offset machine
- Powder coating curing
- Paper coating drying
- All type of laminations
- Screen printing curing on T-Shirts and textiles
Product name

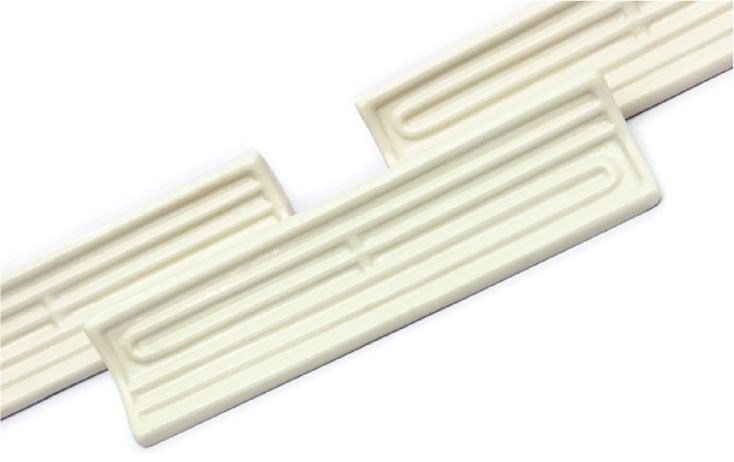

Ceramic Infrared Heaters
Our infrared heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt in heating coil. The heaters incorporates highly heat proof of resistance wire that provides safety against any damage.
Longer services life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiations efficiency is also very high. Our ceramic infrared heaters are available in two standard models.
1. Full length 244 mm (FSR) 60 mm * 250 to 100 W
2. Half length 122 mm (FSR) 60 mm * 125 to 50 W
Applications
- Thermoforming and vacuum forming machine
- PVC pipe belling / socket machines
- Hot stamping machines
- Shrink packaging
Product name

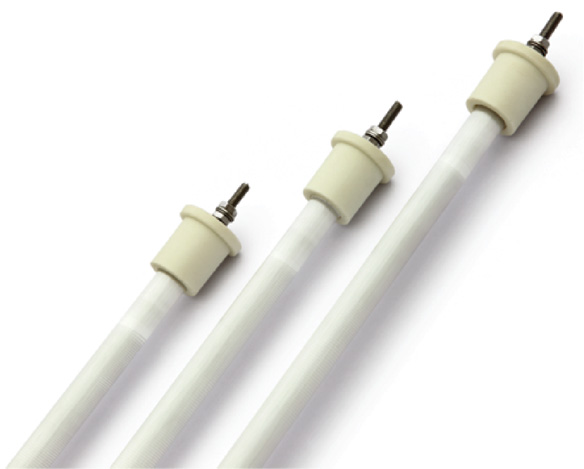

Medium Wave Infrared Glass Heaters
(Quartz Infrared Heaters)
Features
- It is available in diameters of 8 mm, 10 mm, 12 mm, 15 mm and 19 mm
- Available in length from 300 mm to 1500 mm
- Can be used only in horizontal position
- Fitted with specially designed heating coil to ensure longer life
- Maintenance is low
Applications
- Shrink packaging machine
- Lamination industries
- Drying textiles
- Curing rubber
Product name
Product name
Product name

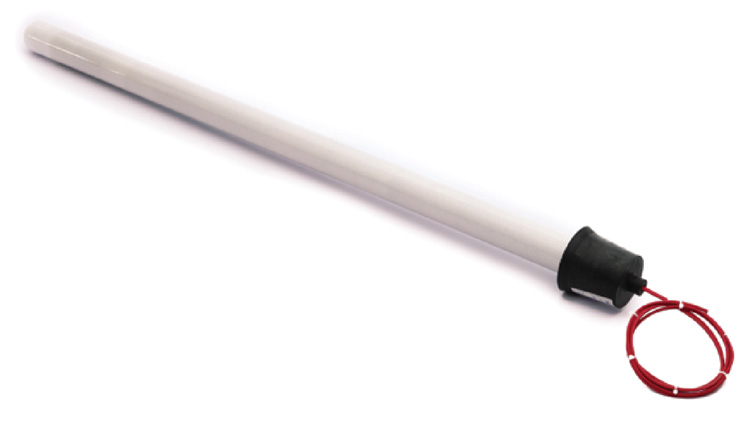

Silica glass heaters
We are manufacturing silica glass heaters as per customer specifications of length, wattages and voltages. But the outer diameter of glass is standard from 25 mm to 50 mm .And non heating area of the heaters is available as per customers requirement.
